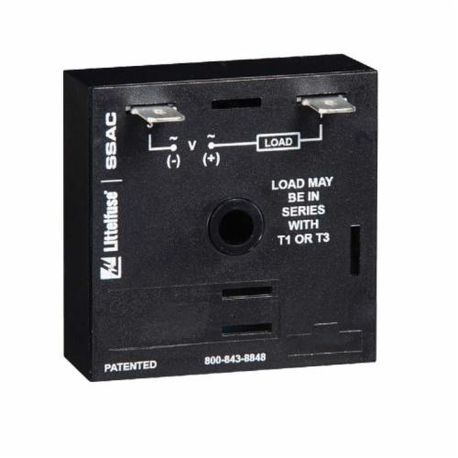

Littelfuse® SSAC® KSD1423 External Adjust Time Delay Relay, 0.1 to 10 min Time Setting, 120 VAC, SPST-NO Contact Form

The KSD1 series features two terminal, series connection with the load. The KSD1 series is an ideal choice for delay on make timing applications. This series is designed for general purpose commercial and industrial applications where a small, cost effective, reliable solid state timer is required. The factory calibration for fixed time delays is within 5% of the target time delay. The repeat accuracy, under stable conditions, is 0.5% of the selected time delay. This series is designed for popular AC and DC voltages. Time delays of 0.1 sec to 1000 min are available in 6 ranges. The output is rated 1 A steady and 10 A inrush. The modules are totally solid state and encapsulated to protect the electronic circuitry.
