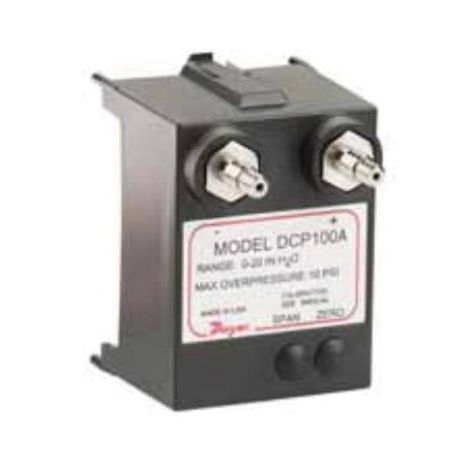

Dwyer® DCP100A Pressure Module, 10 psi Pressure, 10 psi Differential, 24 V, +/- 5% % Accuracy, 4 to 20 mA Output

The DCP100A or DCP200A pressure modules are designed exclusively for use with the Dwyer® DCT1000 dust collector timer controller boards for on-demand cleaning requirements. These series of modules are available in 10 in wc (2.49 kPa) or 20 in wc (4.98 kPa) ranges, which allow for differential process pressure measurement as indicated on the display of the master controller. An isolated 4 to 20 mA readout channel is provided for remote pressure display. The 4 to 20 mA output may be wired either for use with an external power supply and indicator or using the isolated on-board 24 V power supply to power the loop.
