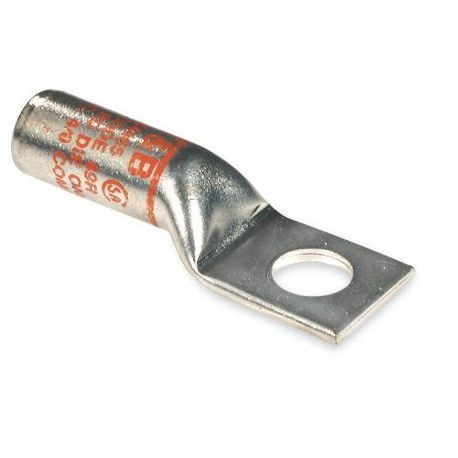

Color-Keyed® 54470 1-Hole High Voltage Compression Lug, 4/0 AWG Copper Conductor, Die Code: 54R, 1/2 in Stud, Copper

These Color-Keyed® Connectors are recommended for up to 15 KV applications. Installed with standard T&B® Cat. No. TBM15I, 13100A, TBM14M hydraulic compression tools with special rounding dies. The compression forms the connector and conductor into a solid mass to provide an optimum electrical bond between connector and conductor. The rounding die overlapped compressions provide a smooth round surface. This, combined with the tapered barrel ends, addresses the controlling of potentially damaging electrical stresses of high voltages.
